Duty cycle crane

SENNEBOGEN 6300

Technical data

Technical data:

Load capacity
300 t
Hook height
80,3 m
Diesel engine
from 570 to 840 kW
Winch
from 2 x 350 to 2 x 450 kN

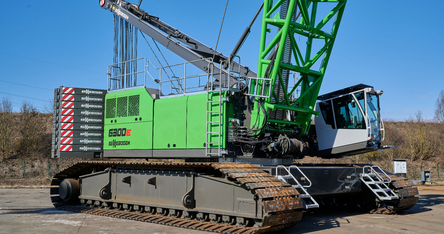

300 t duty cycle crane for challenging applications

At home in the dredging and quarrying sectors and in special civil engineering: the SENNEBOGEN 6300 E ’s high power is particularly suited to demanding dynamic applications. As the largest heavy Duty Cycle Crane in the range the machine is well suited to working under extreme loads.

SENNEBOGEN 6300 E Crawler Duty cycle crane pictogram

6300 Crawler

Brochure

Your advantages

SENNEBOGEN 6300 Duty cycle crane Dragline Hydro duty cycle crane

For the increasing demands of large modern projects

  • Versatile application: Can operate different attachments with up to 350 bars of operating pressure
  • Heavy duty equipment: robust design, massive construction  and components, very reliable for tough applications in dredging, quarrying or special civil engineering
SENNEBOGEN 6300 Crawler Duty cycle crane Dragline Hydro duty cycle crane Crawler undercarriage

High-performance powerhouse, easy to operate

  •  Three engine versions 570 kW/708 kW/840 kW
  •  Powerful winches with 450 kN pulling force
  •  Proven SENNEBOGEN modular concept - e.g. 80 m long main boom available for hook operations
  • Easy maintenance: Centrally accessible maintenance points, clearly laid out design
  • Comfort Maxcab for relaxed working over long periods and the best view
SENNEBOGEN 6300 Duty cycle crane Dragline Hydro duty cycle crane

300 t duty cycle crane for the quarrying industry and special civil engineering

  • For casing machines and pile grabs up to DN 3300
  • For dragline bucket up to 10 m³
  • For mechanical and hydraulic diaphragm wall grabs
  • For material handling with clamshell or orange peel grab
  • For lifting work up to 300 t
  • For below ground construction with leader
  • Max. main boom length: 80.3 m

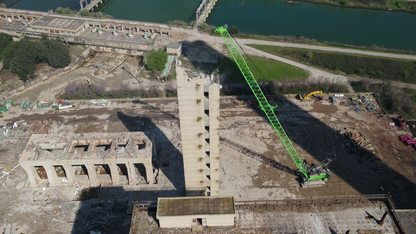

The SENNEBOGEN 6300 in operation

SENNEBOGEN 6300 Duty cycle crane
01/07
6300 Crawler
SENNEBOGEN 6300 Duty cycle crane
02/07
6300 Crawler
SENNEBOGEN 6300 Duty cycle crane
03/07
6300 Crawler

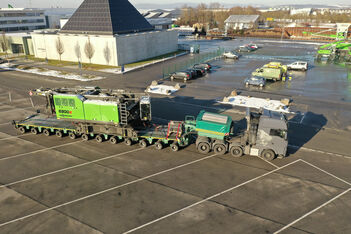

SENNEBOGEN 6300 Duty cycle crane Transport on a low-loader
04/07
6300 Crawler - Transport on a low-loader

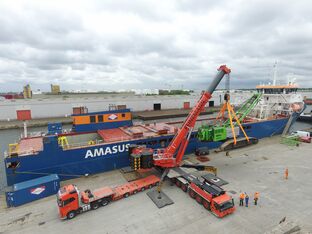

SENNEBOGEN 6300 Crawler Duty cycle crane / Dragline Loading onto a ship Offshore
05/07
6300 Crawler - Loading

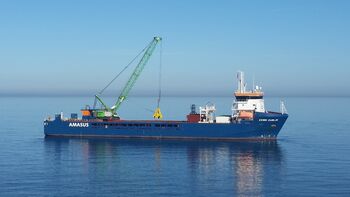

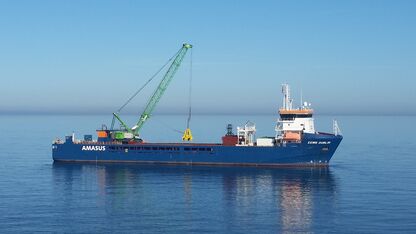

SENNEBOGEN 6300 Crawler Duty cycle crane / Dragline Offshore
06/07
6300 Crawler - Offshore
