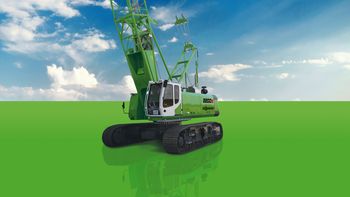

Crawler crane

SENNEBOGEN 2200 E

Technical data

Technical data:

Load capacity
80 t
Hook height
59,7 m
Diesel engine
186 kW
Winch
120 kN

High-performance for effective lifting jobs

Thanks to a strong winch and high cable speeds, the SENNEBOGEN 2200 E crawler crane offers abundant reserves of energy. Its telescopic crawler undercarriage ensures optimum stability and high load capacities and at the same time guarantees ease of transport.

SENNEBOGEN 2200 E Crawler Crawler crane pictogram

2200 Crawler

Brochure

Your advantages

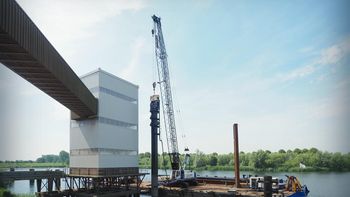

SENNEBOGEN 2200 E Offshore Crawler crane / Lattice mast crane

Flexible all-rounder for every application

  • Lifting jobs up to 80 t
  • Interesting all-rounder for the prefabricated industry: can perform all lifting, transporting and assembly tasks on the construction site
  • Can be used with vibrator attachment in special civil engineering, for example, or on a pontoon for hydraulic engineering
SENNEBOGEN 2200 E Crawler crane / Lattice mast crane Construction site applications / Construction site crane Above ground construction Below ground construction Lifting work

Ideally suited to industrial and prefabricated construction

  • Depending on the configuration, it can move loads of up to 5.5 t within a working radius of 27 m
  • Thanks to sensitive steering, assembly of components with millimeter precision is possible
  • Lattice boom can be customized from 12.1 m to 59.7 m using the proven SENNEBOGEN modular system
SENNEBOGEN 2200 E Crawler crane / Lattice mast crane / Construction site crane Above ground construction Below ground construction

Abundant energy reserves and easy to transport

  • High-performance: CAT diesel engine with 186 kW / 253 hp - 200, tier 3b/4i
  • Telescoping undercarriage: Stabilizer width of 5 m, track width of 4.2 m (external width of 5 m with 800 mm base plates)
  • Winches: two 120 kN winches (1st position) with cable speeds of up to 125 m/min

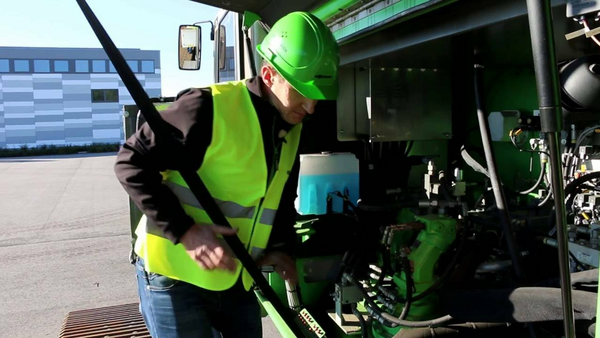

  • Easy maintenance: central and comfortable access to maintenance points
  • Comfort Maxcab for relaxed working over long periods and best view (optional: adjustable cab elevation)

The SENNEBOGEN 2200 in operation

SENNEBOGEN 2200 robust and powerful crawler crane Below ground construction
01/10
2200 Crawler - Below ground construction

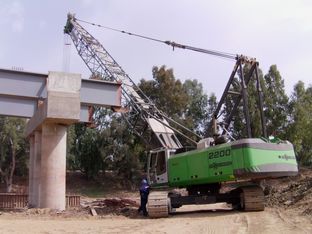

SENNEBOGEN 2200 robust and powerful crawler crane Construction work Bridge construction
02/10
2200 Crawler - Bridge construction

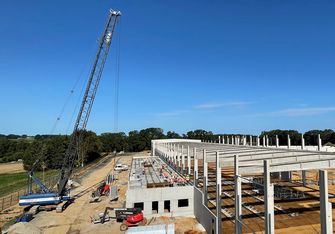

SENNEBOGEN 2200 robust and powerful crawler crane Concrete prefabricated construction
03/10
2200 Crawler - Concrete prefabricated construction

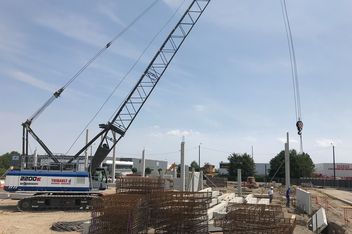

SENNEBOGEN 2200 robust and powerful crawler crane Industrial construction
04/10
2200 Crawler - Industrial construction

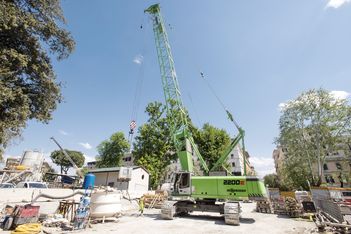

SENNEBOGEN 2200 robust and powerful crawler crane Lifting work
05/10
2200 Crawler - Lifting
SENNEBOGEN 2200 E Crawler crane / Lattice mast crane / Construction crane Putting in support pillars in foundation work
06/10
2200 Crawler - Putting in support pillars in foundation work

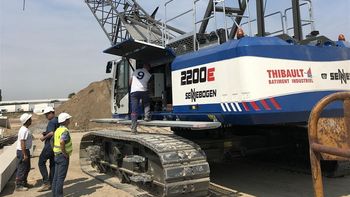

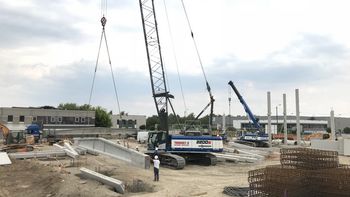

SENNEBOGEN 2200 E Crawler crane / Lattice mast crane / Construction site crane Above ground construction Below ground construction
07/10
2200 Crawler - Above and below ground construction
SENNEBOGEN 2200 Crawler crane / Lattice mast crane / Construction site crane Bridge construction
08/10
2200 Crawler - Bridge construction

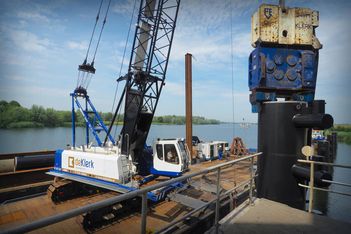

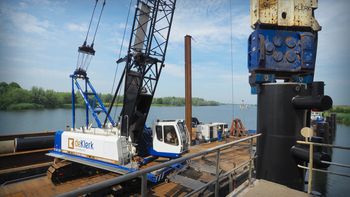

SENNEBOGEN 2200 E Crawler crane / Lattice mast crane / Construction site crane Hydraulic engineering on a pontoon
09/10
2200 Crawler - Hydraulic engineering on a pontoon

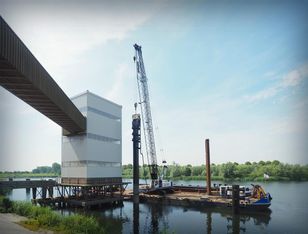

SENNEBOGEN 2200 E Crawler crane / Lattice mast crane / Construction site crane Hydraulic engineering on a pontoon
10/10
2200 Crawler - Hydraulic engineering on a pontoon
