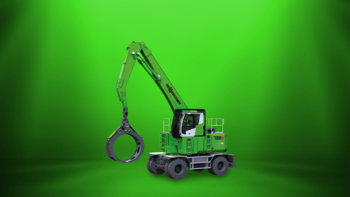

Timber handling machine SENNEBOGEN 735 E

Technical data:

Operating weight
up to 43,9 t
Maximum reach
up to 11,3 m
Diesel engine
231 kW

Material Handler with High load capacities for timber handling

The SENNEBOGEN 735 E is specially designed for the challenges of mobile timber handling: rear-hinged boom for optimum weight distribution, compact measurements and small slewing radii for maneuvering in narrow spaces between stacks, high load capacities, and a stacking height of around 10 meters. The Pick & Carry expert!

Your advantages

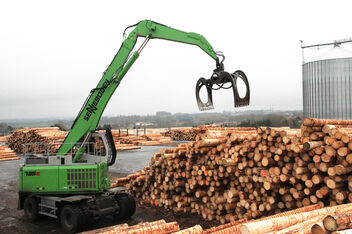

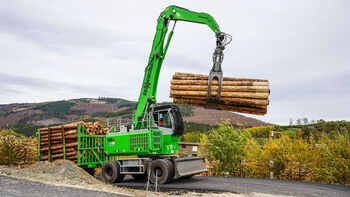

 SENNEBOGEN material handler in saw mill, log transport, timber handling with timber grab

Perfect for timber handling

  • Rear-linked boom arm for perfect weight distribution and to reduce the counterweights
  • Stable even on demanding terrain, on slopes or on difficult ground thanks to eight-wheel tyres
  • Smooth but powerful operator experience
  • Robust mobile undercarriage, strong special axles and all-wheel travel drive - ideally suited for trailer operation with weights of up to 30 tonnes

Optimise storage space thanks to high load capacities and reach

  • Stacking height of around 10 meters
  • Reach of 11.3 meters
  • Load capacity of 7.8 tonnes with a reach of 9 meters

Highest standard of work safety

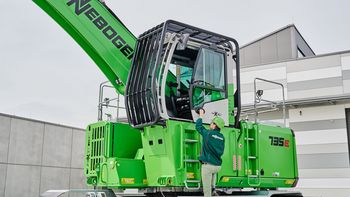

  • Enter the cabin and uppercarriage safely thanks to non-slip treads and sturdy handles
  • Sturdy all-round protective grating for the cabin
  • Powerful LED spotlights for optimal illumination of the work area
  • Ideal camera monitoring of all safety-relevant areas

Durable and efficient

  • Durable and robust in extreme weather and harsh operation conditions
  • Consistent performance thanks to robust steel construction, and high-quality drive and control components
  • Environmentally-friendly drive technology:
    • Large-scale pipes and valves for maximum efficiency
    • State-of-the-art engine, drive and emission systems in line with the latest technology standards (stage V)

Maximum operator comfort

  • Pleasant indoor climate - thanks to automatic heating/air conditioning
  • Back-friendly comfort seat, adjustable armrests, joysticks that sit comfortably in the hand and optimally arranged controls for better ergonomics
  • Easy control - intelligent machine feedback: SENCON control system with intuitive user interface

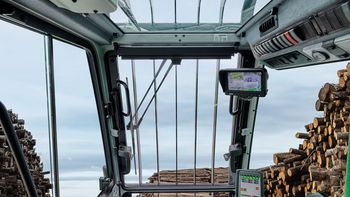

Perfect view

  • Ideal overview on all sides thanks to rigid 1.0m cab elevation (optional: 1.5m) and rear-linked boom arm
  • Very agile due to 360° endless rotation of the uppercarriage, optimal working parallel to the sorting line
  • Unrestricted all-round view, thanks to spacious cab and large side and front windows

The SENNEBOGEN 735 in operation

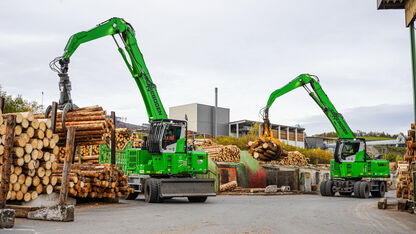

 SENNEBOGEN material handler in saw mill, log transport, timber handling with timber grab
01/10

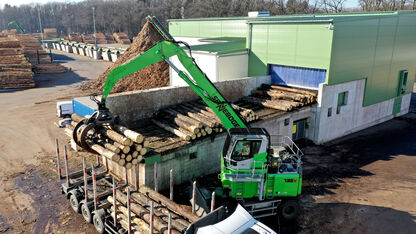

735 Mobile - Unloading a truck with timber grab incl. integrated leaf chain. - More info
Location: Germany

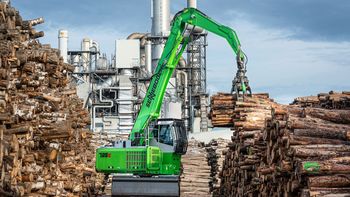

 SENNEBOGEN material handler in saw mill, log transport, timber handling with timber grab
02/10

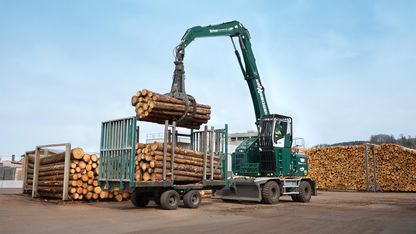

735 Mobile - Log transport with trailer: the material handler can transport up to 30 tons of logs. - More info
Location: Germany
03/10
735 Mobile - Thanks to the slewing uppercarriage and automatic direction of travel switching, turning maneuvers are no longer necessary.
04/10

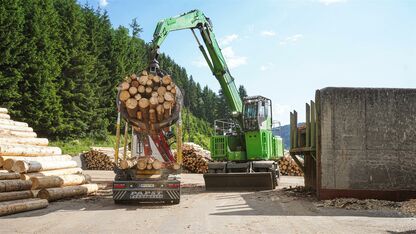

735 Mobile - Loading and unloading trailers - High load capacities - for more efficient loading and unloading of trailers and wagons.
05/10

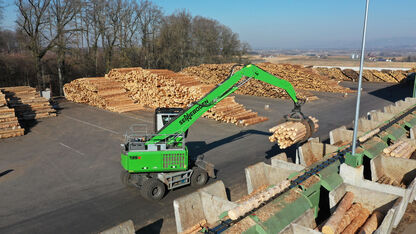

735 Mobile - Feeding the debarker - Fast work cycles enable rapid supply of the feed table.
SENNEBOGEN 735 E Mobile Pick & Carry Material handler for saw mills Timber handling
06/10

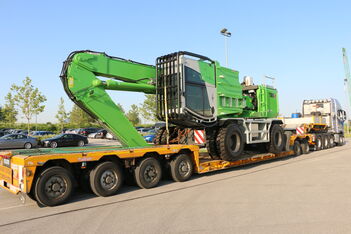

735 Mobile - Easy transport of the 735 E on a low-loader with foldable 1.5 m cab elevation.
SENNEBOGEN 735 Mobile
07/10

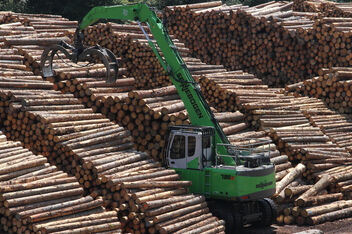

735 Mobile - Easy stacking at the log yard thanks to the best overview at 4 or 4.5m viewing height.
Location: Germany
SENNEBOGEN 735 E Mobile Pick & Carry Material handler for saw mills Sorting line
08/10

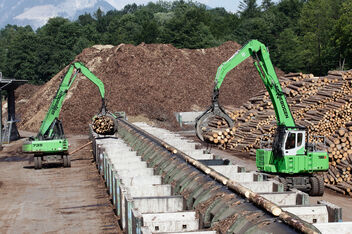

735 Mobile - 735 C-series and E-series operate in parallel on box removal at the sorting line.
SENNEBOGEN 735 E Mobile Pick & Carry Material handler for saw mill sorting line sampling
09/10

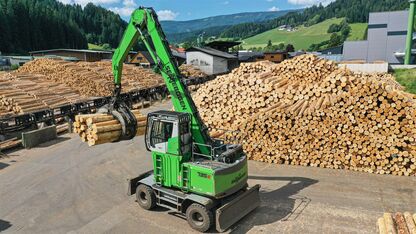

735 Mobile - Thanks to its compact machine dimensions, the 735 E can also manoeuvre in narrow spaces between stacks: this creates space and ensures efficient log logistics in your company.
SENNEBOGEN 735 E Mobile Pick & Carry Material handler for saw mills Timber handling - optimal use of storage space
10/10
735 Mobile - Even narrow spaces between stacks and stackingheights of up to 10m pose no problem for the 735 E.
