Duty cycle crane

SENNEBOGEN 6140

Technical data

Technical data:

Load capacity
140 t
Hook height
66 m
Diesel engine
from 570 to 708 kW
Winch
from 2 x 300 to 2 x 350 kN

Huge power for maximum load capacity

If you need huge load capacities over the entire working area, then the SENNEBOGEN 6140 E is the right machine for you. Thanks to its high load capacity of 24 t across a work area of 20 m it can both operate heavy attachments in grab mode and also move heavy loads - always ensuring maximum stability thanks to its robust wide-gauge undercarriage.

SENNEBOGEN 6140 E Crawler Duty cycle crane pictogram

6140 Crawler

Brochure

Your advantages

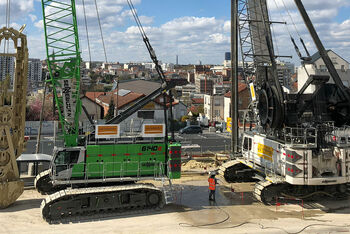

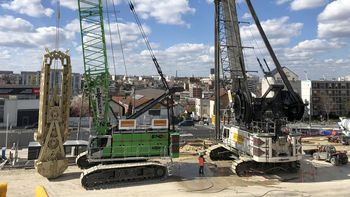

SENNEBOGEN 6140 E Duty cycle crane with hydro rotary cutter and diaphragm wall grab

Huge load capacity across the entire work area

  • Can lift 24 t across 20 m work radius, maximum load capacity 140 t
  • So it can operate heavy attachments in grab mode and move heavy loads in lifting mode
  • Robust boom: Strong 1,900 mm wide lattice boom with length of up to 63.5 m

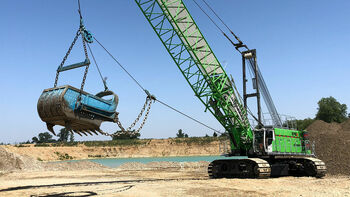

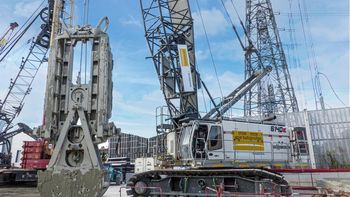

SENNEBOGEN 6140 E HD Duty cycle crane Dragline with diaphragm wall grab Gravel extraction

Expert in special civil engineering & extraction

  • For casing machines and pile grabs up to DN 3300
  • For dragline buckets up to 5.4 m³
  • For mechanical and hydraulic diaphragm wall grabs
  • For diaphragm wall cutters
  • For material handling with clamshell or orange peel grab
  • For lifting work up to 140 t
  • For below ground construction with a leader
  • For dynamic ground compaction

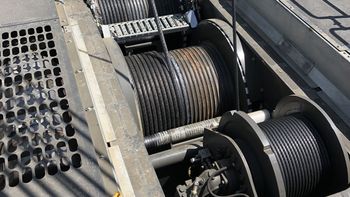

SENNEBOGEN 6140 HD E duty cycle crane / dragline

Drive system for the most dynamic movements

  • Powerful 708 kW (optional 563 kW) diesel engine ensures sufficient reserves of power for every application
  • Meets the high standards of stage IV emissions requirements
  • 2 x 25 t freefall winches, optional 30 kN tagline winch

The SENNEBOGEN 6140 in operation

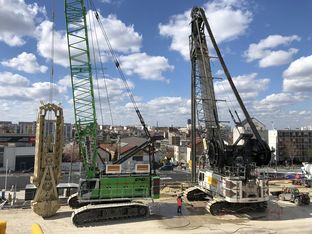

SENNEBOGEN 6140 E HD Crawler Duty cycle crane / Dragline Hydro rotary cutter / Diaphragm wall grab Grand Paris Express
01/07
6140 Crawler - Construction site application with hydro rotary cutter and diaphragm wall grab

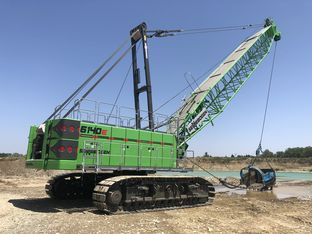

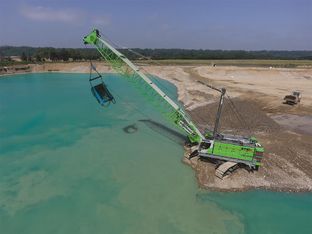

SENNEBOGEN 6140 E HD Crawler Duty cycle crane / Dragline Gravel extraction with dragline bucket / Extraction industry
02/07
6140 Crawler - Gravel extraction with dragline bucket

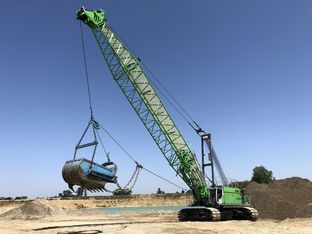

SENNEBOGEN 6140 E HD Crawler Duty cycle crane / Dragline Gravel extraction with dragline bucket / Extraction industry
03/07
6140 Crawler - Gravel extraction with dragline bucket
SENNEBOGEN 6140 E HD Crawler Duty cycle crane / Dragline Gravel extraction with dragline bucket / Extraction industry
04/07
6140 Crawler - Gravel extraction with dragline bucket

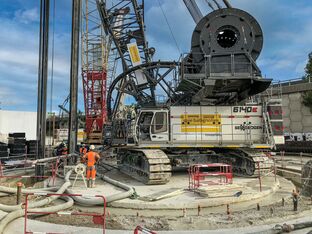

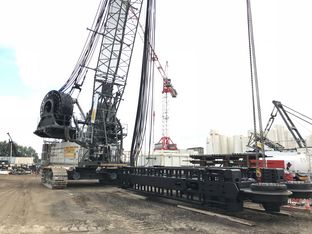

SENNEBOGEN 6140 reliable and robust duty cycle crane specialized below ground construction
05/07
6140 Crawler - Specialized below ground construction with hydro rotary cutter
SENNEBOGEN 6140 reliable and robust duty cycle crane specialized below ground construction
06/07
6140 Crawler - Specialized below ground construction with hydro rotary cutter
SENNEBOGEN 6140 reliable and robust duty cycle crane
07/07
6140 Crawler - Specialized below ground construction with hydro rotary cutter
