Duty cycle crane

SENNEBOGEN 640

Technical data

Technical data:

Load capacity
40 t
Hook height
41,1 m
Diesel engine
186 kW
Winch
from 2 x 120 to 2 x 160 kN

Multifunctional, reliable and easy to transport

The SENNEBOGEN 640 E duty cycle crane has been specially designed for particularly demanding and dynamic applications with a wide range of attachments. Thanks to its robust construction, the 40 ton machine’s strengths really come into play in special foundation engineering. Whether it is being used with a leader, rope grab or hydraulic casing machine, the duty cycle crane’s multi-circuit hydraulic system and strong rotary drive mean there are no limits to what it can do.

Your advantages

SENNEBOGEN 640 E Duty cycle crane Dragline Hydro duty cycle crane Below ground construction

Designed for particularly demanding, dynamic applications

  • For casing machines and pile grabs up to DN 2000
  • For dragline buckets up to 2.3 m³
  • For material handling with clamshell or orange peel grab
  • For lifting work up to 40 t
  • Max. Main boom length: 41.1 m - can be extended by 15 m with fly boom

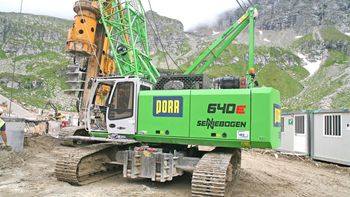

SENNEBOGEN 640 E crawler Duty cycle crane Hydro duty cycle crane Dragline Special below ground construction Power plant maintenance

Multifunctional all-rounder

  • Both the mobile and crawler versions can be ready to work in a short space of time
  • Safe and stable on 700 mm 3-grouser base plates thanks to the telescoping crawler chassis
  • Can be used for logistics tasks and construction work thanks to the mobile undercarriage with 21 m lattice boom
SENNEBOGEN 640 E Mobile Duty cycle crane Hydro duty cycle crane Dragline

Ergonomic work space for the operator

  • Comfortable modern Maxcab with optional elevation by up to 2.70 m and tilting by up to 15°
  • Multiple headlights and additional cameras ensure a comfortable all-round view and a high level of occupational safety
  • The SENCON diagnostic and control system supports the operator in day-to-day operations

The SENNEBOGEN 640 in operation

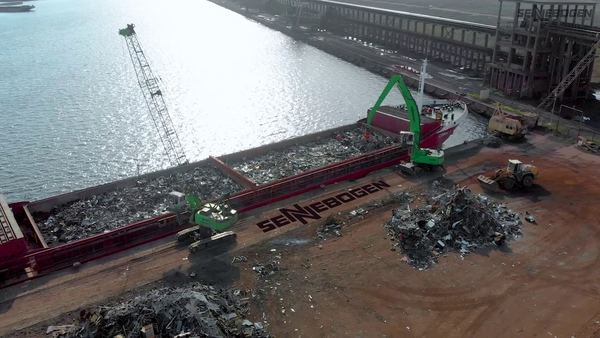

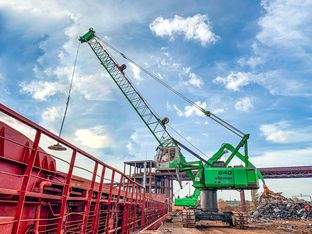

SENNEBOGEN duty cycle crane 640 crawler pylon scrap compaction port
01/09
640 Crawler - scrap compaction in the port with 1.5 m pylon extension

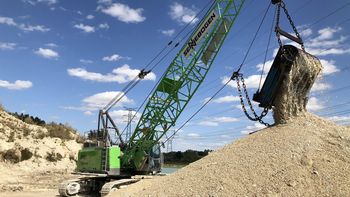

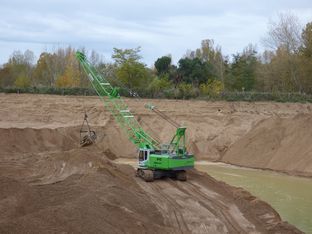

SENNEBOGEN 640 crawler duty cycle crane extraction with dragline bucket
02/09
640 Crawler - Extraction with dragline bucket

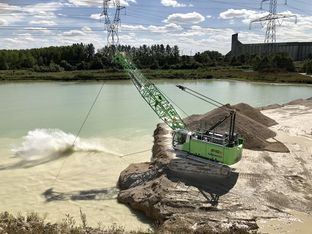

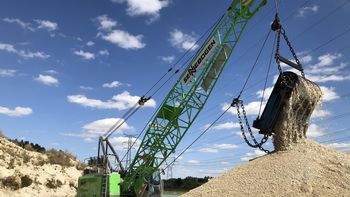

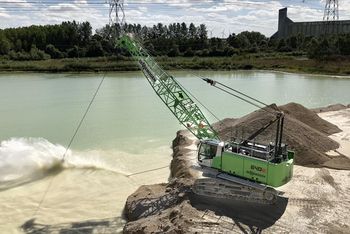

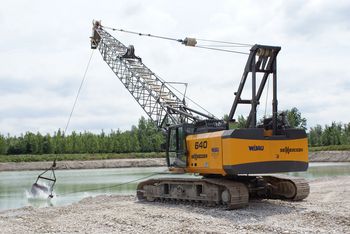

SENNEBOGEN 640 compact and versatile duty cycle crane gravel extraction
03/09
640 Crawler - Gravel extraction

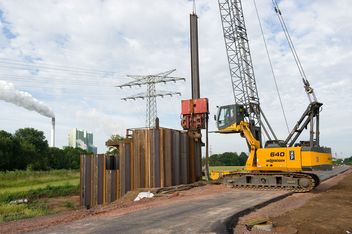

SENNEBOGEN 640 compact and versatile duty cycle crane above and below ground construction
04/09
640 Crawler - Above and below ground construction with elevating cab

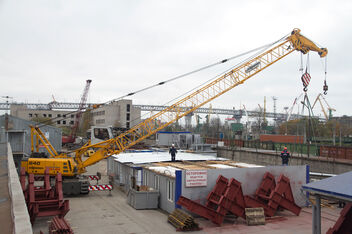

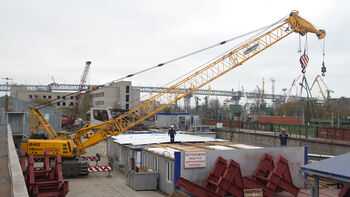

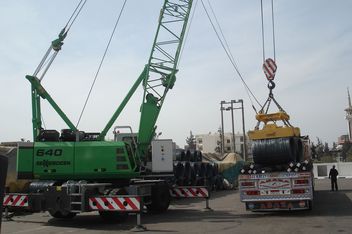

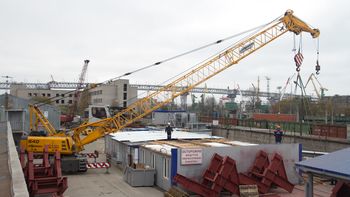

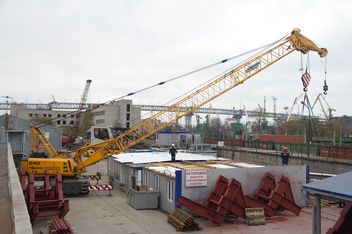

SENNEBOGEN 640 compact and versatile duty cycle crane lifting work
05/09
640 Mobile - Lifting work with magnet grab and tagline winch

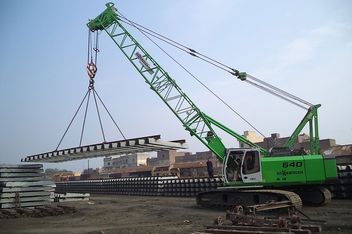

SENNEBOGEN 640 compact and versatile duty cycle crane Loading
06/09
640 Crawler - Loading

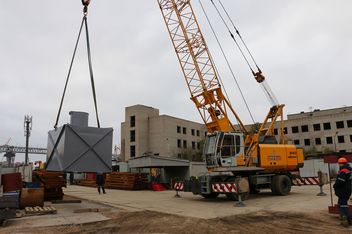

SENNEBOGEN 640 compact and versatile duty cycle crane lifting work
07/09
640 Mobile - Lifting
SENNEBOGEN 640 compact and versatile duty cycle crane lifting work
08/09
640 Mobile - Lifting work with elevating cab

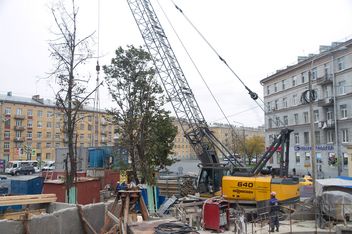

SENNEBOGEN 640 compact and versatile duty cycle crane below ground construction
09/09
640 Mobile - Below ground construction
