Excavation pit support

Duty cycle cranes with diaphragm wall grabs or hydro cutters are the most important equipment for foundation work and for sealing building ground and excavation pits. SENNEBOGEN duty cycle cranes are used as carrier equipment for the diaphragm wall grab. The flexible and all-terrain telescopic crawler cranes are excellent as feeders for the machines working the excavation and producing diaphragm walls.

The diaphragm wall technique can be used to great depths. The comprehensive concept of the SENNEBOGEN duty cycle crane is convincing due to:

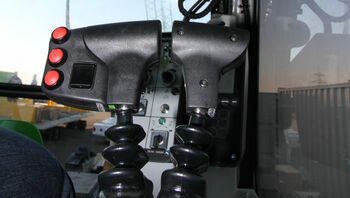

  • sensitive control, sensitive braking systems and excellent winch traction at high cable speeds
  • hydraulic and electronic winch synchronization

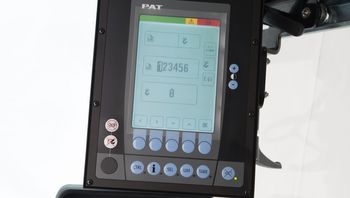

  • special equipment such as depth measuring device

Advantages of SENNEBOGEN duty cycle cranes with diaphragm wall grab

Maximum efficiency and slotting performance

Construction of diaphragm walls for stabilizing excavation pits or deep foundations with a diaphragm wall width of up to 1.50 m.

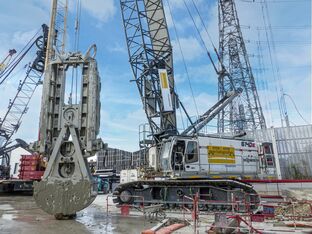

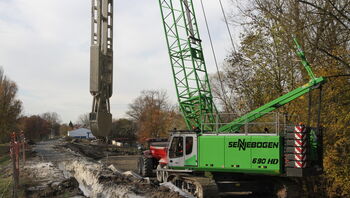

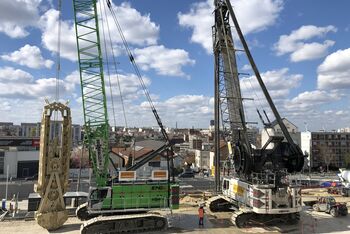

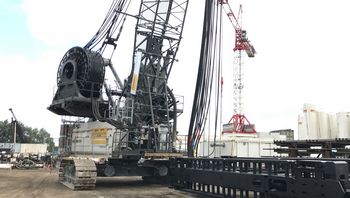

Jobsite pictures excavation pit support

Machines

t
t
m
m
Diesel
Battery
Crawler
Mobile
SENNEBOGEN 613
Max. load capacity: up to 16 t
Max. hook height: up to 24 m
SENNEBOGEN 643
Max. load capacity: up to 40 t
Max. hook height: up to 43 m
SENNEBOGEN 630
Max. load capacity: up to 30 t
Max. hook height: up to 35.5 m
SENNEBOGEN 640
Max. load capacity: up to 40 t
Max. hook height: up to 41.1 m
SENNEBOGEN 655
Max. load capacity: up to 55 t
Max. hook height: up to 49.5 m
SENNEBOGEN 653
Variants: Electro Battery
Max. load capacity: up to 50 t
Max. hook height: up to 43 m
SENNEBOGEN 670
Max. load capacity: up to 70 t
Max. hook height: up to 56.9 m
Max. load capacity: up to 100 t
Max. hook height: up to 63.5 m
SENNEBOGEN 6140
Max. load capacity: up to 140 t
Max. hook height: up to 66 m
SENNEBOGEN 673
Max. load capacity: up to 70 t
Max. hook height: up to 51 m
New
Max. load capacity: up to 220 t
Max. hook height: up to 74.7 m
Sennebogen 683
Max. load capacity: up to 80 t
Max. hook height: up to 57 m
SENNEBOGEN 6300
Max. load capacity: up to 300 t
Max. hook height: up to 80.3 m
Max. load capacity: up to 100 t
Max. hook height: up to 46.8 + 15 m
SENNEBOGEN 6113
Max. load capacity: up to 120 t
Max. hook height: up to 67 m
SENNEBOGEN 6133 Lettering Type designation
Max. load capacity: up to 130 t
Max. hook height: up to 67 m
New
Max. load capacity: up to 200 t
Max. hook height: up to 78 m
