Telescopic crawler crane SENNEBOGEN 6103 E

Technical data:

Load capacity
up to 100 t
Hook height
up to 46,8 + 15 m
Diesel engine
186 kW

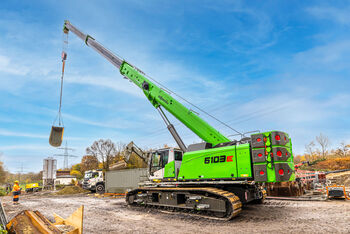

100 t telescopic crane for demanding pick and carry operations

100 t load capacity and a maximum boom length of up to 62 m make the SENNEBOGEN 6103 E a powerhouse for heavy lifting, moving and positioning of large loads. Use your telesopic crawler crane flexibly: with the pick and carry function, you can move with up to 100% load. This allows you to reach even hard-to-reach places - a big plus for extensive construction sites, especially in precast assembly and infrastructure construction.

Your advantages

Outstanding working heights - easy changeover

  • Max. Main boom length of 46.8 m in the standard configuration
  • Optional: increase your reach easily and quickly to 62 m reach with fly jib and extension
Crawler tracks undercarriage telescopic crane SENNEBOGENN 673 construction site

Ideal for difficult terrain

  • Overcome obstacles: robust telescopic crawler undercarriage with up to 4.20 m track width
  • No need for time-consuming positioning or supporting of the machine
  • Work on inclines of up to 4° thanks to the stable steel construction of the boom

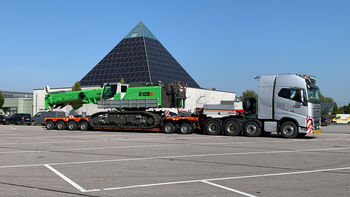

Cost-effective transport - quick assembly

Decide between two options:

  1. Save time - transport the machine with travelling gears: unload - mount the ballast - get going
  2. Simplify transport: after dismantling the undercarriages and ballast, your machine has a compact overall width of 3.0 m

Self-assembly system: all assembly steps are taken over by the machine itself without the need of auxiliary cranes

Moving under load with maximum load capacity

  • Pick and Carry: Telescoping and moving with up to 100 % load
  • Strong & flexible: for example 65 t load capacity at 6.0 m reach
  • Reach every corner on your construction site and extend the working range of your telescopic crawler crane

Maximum safety and best operator comfort

  • Have everything in view - even in difficult conditions:
    • Bright LED lighting, standard camera monitoring to the right and rear.
    • Cab tilts 20° as standard, elevate up to an eye level of 5.60 m
  • Avoid risks: robust railings, walkways and platforms with handrails at relevant points
  • Work in a relaxed and productive manner: back-friendly comfort seat, ergonomic controls, heating/air-conditioning system

Maintenance and service: cost-effective and intuitive

  • Keep it simple: we rely on hydraulics and electrics where electronics add no value
  • Reduce your costs thanks to cost-effective components
  • Keep an overview: clear arrangement and labeling of components

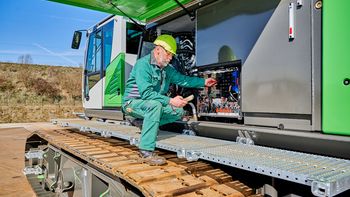

  • Take care of maintenance and servicing yourself: easily accessible service points and clearly arranged standard components

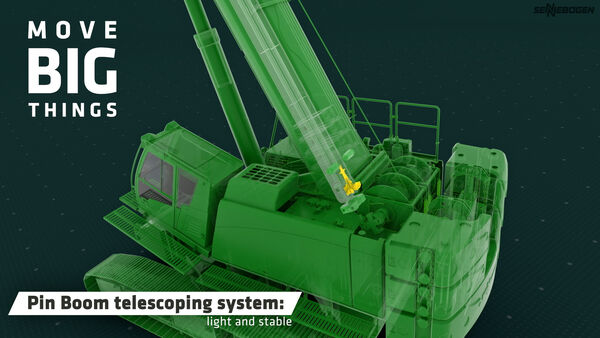

How the boom system works

Increase your working height with the Pin Boom

May we introduce?

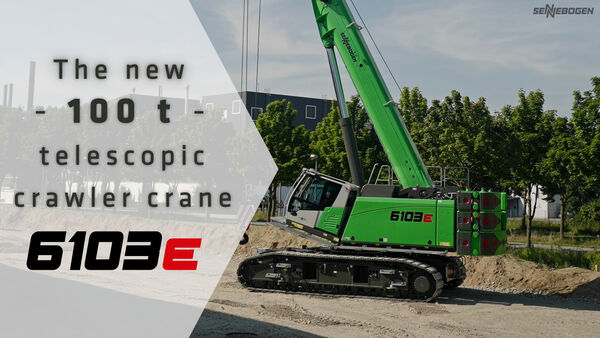

Discover the 100 t telescopic crane in detail

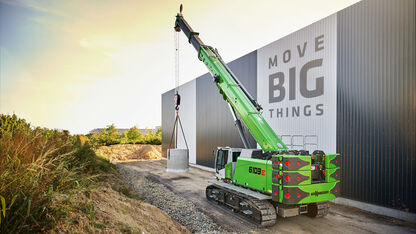

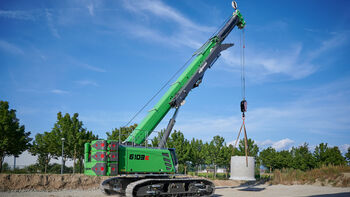

The SENNEBOGEN 6103 in operation

6103 Crawler
01/04
Best off-road mobility - highest stability: adjust the telescopic crawler undercarriage flexibly to all construction site requirements. - More info
6103 Crawler
02/04
Travel with up to 100% of the load thanks to the high load capacity! This allows you to reach every angle on the construction site and benefit from a maximum working range.
6103 Crawler
03/04
Maximum working heights - as standard: the 5-section Pin Boom offers you a maximum length of 46.8 m (optionally extendable up to 62 m). - More info
6103 Crawler
04/04
For demanding lifting, moving and positioning of large loads: the SENNEBOGEN 6103 E with 100 t lifting capacity and up to 62 m boom length is a real powerhouse for the construction site. - More info
