Hydraulic engineering: River engineering specialist equips pontoon with uppercarriage of duty cycle crane

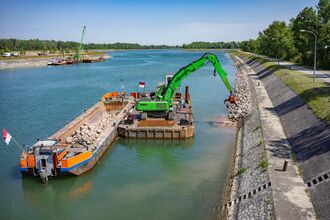

A few months ago, the company decides to upgrade its own machinery and renew the crane superstructure of one of its pontoons. This platform is intended for particularly heavy and dynamic work. Accordingly, the requirements for the crane to be mounted on it were high: On the one hand, the machine should be able to carry out lifting, loading and even pile-driving work with vibratory hammer. On the other hand, it is also needed for dredging as well as the construction of riprap with special attachments (clamshell and orange peel grab). The connection to the pontoon must be firm, however the uppercarriage must also be able to rotate flexibly so that the stability of the platform is guaranteed at all times and at the same time the best performance can be achieved in terms of working radius and capacity.

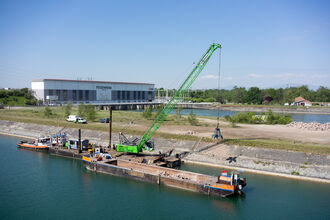

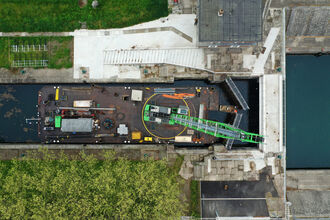

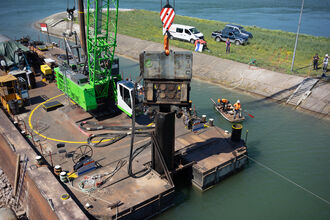

The river engineering specialist was soon convinced by the concept of the SENNEBOGEN 655 HD. The duty cycle crane was specially designed by the Bavarian manufacturer for the installation as superstructure on the pontoon. On site, the local dealer SYGMAT then mounted it to the floating base. Equipped with a cabin that can be elevated by 2.70 m, the operator has a comfortable view of his attachments and the surroundings at all times. The two free-fall winches each have a winch pull of 160 kN. This is essential for lifting and precisely controlling heavy equipment such as the clamshell grab for dredging operations or the orange peel grab for the riprap construction. A third winch adjusts the boom angle. The fourth winch, known as the tagline winch, ensures that the attachments can be positioned precisely. In addition, the duty cycle crane also drives the equipment that is not visible, such as the pontoon's four hydraulically extendable mooring piles. These help to stabilize the floating platform on the river.
