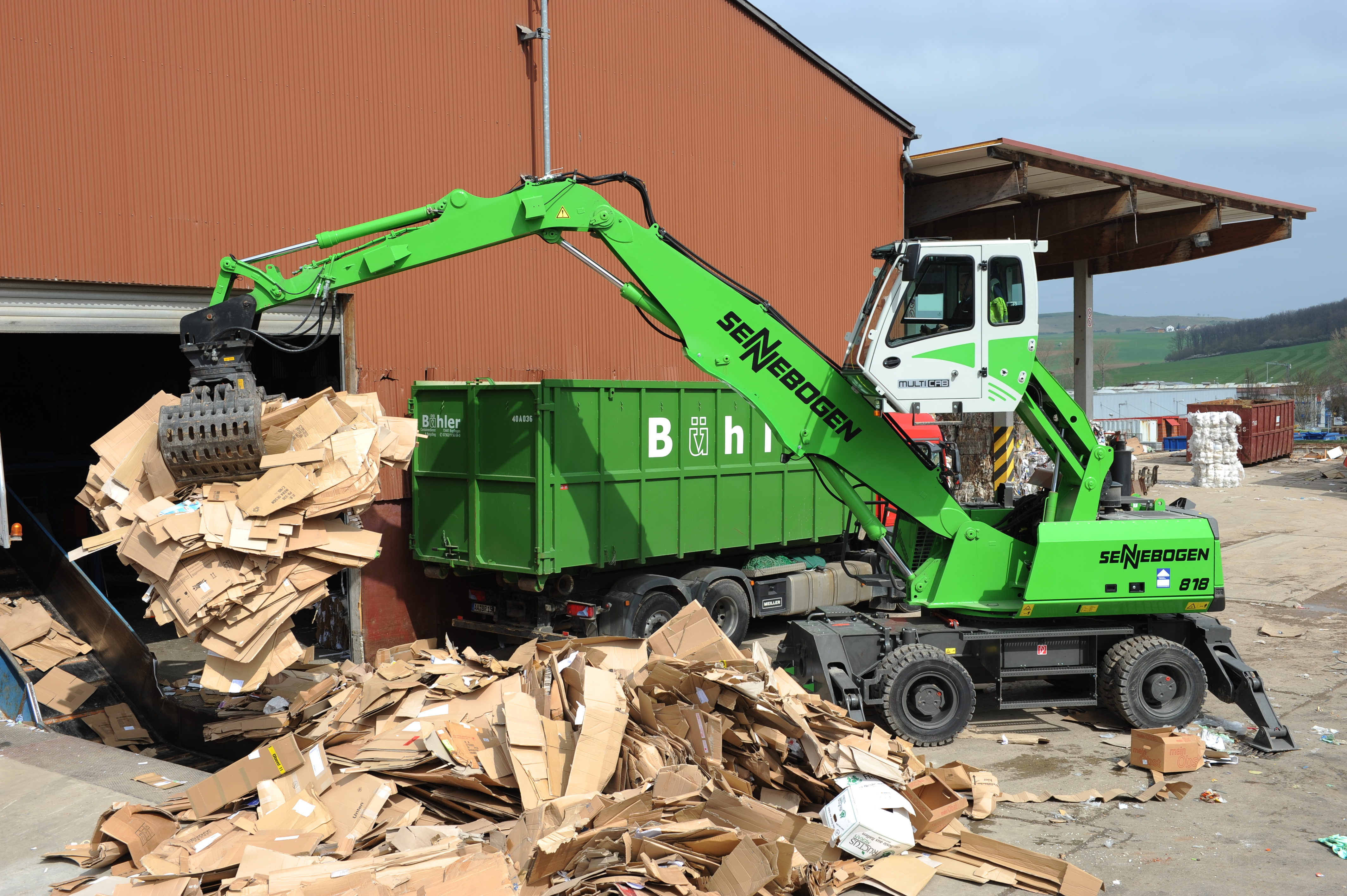

SENNEBOGEN 818

The SENNEBOGEN 818, with an operating weight of 19.9 t, is a sorting and loading machine which is specially tailored to the recycling sector. Thanks to its very compact and robust method of construction, the 818, with a 2.3 m tailgate radius, 2.5 m overall width and 3.11 m transport height, is a nimble and easily transported machine. With a boom length of up to 11 m and powerful pivotal movements, the 818 is suitable for an enormous range of sorting and loading tasks.

The consistent orientation towards practical aspects can be seen in the many constructional details of the 818. For the greatest degree of flexibility, two modules can be screwed onto the middle bridge using either two support brackets or a support panel respectively. The hydraulic cylinders at the boom and jib are arranged in such a way that they are specially protected and mounted so that they are subject to as little dirt as possible. Equally well thought out is the encapsulated ventilator chamber, which directs nearly all of the air outside and not through the engine compartment. The large and contamination-resistant cooler loops guarantee a constant and high cooling performance. The undercarriage has special underbody protection to prevent the rotating parts from getting entangled with mattresses, straps, foil and other waste. The elevating multicab comfort cabin has a viewing height of up to 4.8 m, putting the driver at the centre of the operation, with all-round view ensured by the large window areas and the floor window. The SENNEBOGEN 818 is the ideal standard machine for use in recycling, offering the greatest long-term advantages.

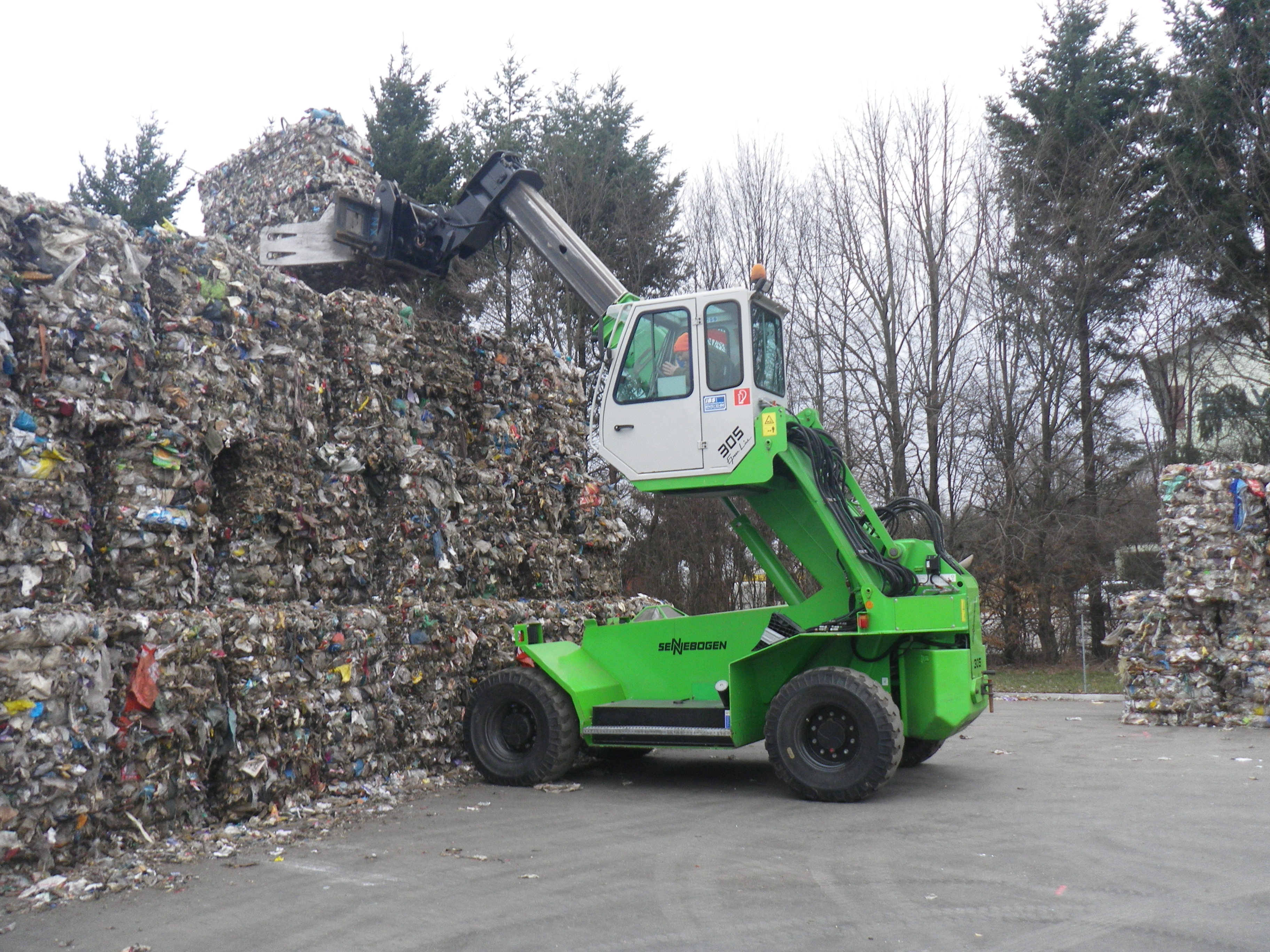

 SENNEBOGEN 305 C+ Multihandler

With its superior design using groundbreaking technology and its compact shape, the SENNEBOGEN 305 C+ Multihandler is a number-one choice for all traditional and new fields of work in which size, flexibility and performance are decisive factors. The extremely compact dimensions (length 4.97 m, height 2.5 m and width 2.54 m) offer outstanding manoeuvrability and flexibility. Thanks to its hydrostatic all-wheel drive with three different steering systems - crab steering, all-wheel steering and front-wheel steering - the turning circle is only 3650 mm on the outer tyres and an extremely low 900 mm on the inner tyres. This is a huge advantage for manoeuvring in narrow passages or small storage boxes. This is combined with a lift height of 7.30 m and max. load of 5 t, making the 305 C+ the perfect all-round machine. The vehicle is optionally available with a two-part XL telescopic boom, which has extended reach and a lift height of up to 9 metres. The XL version is exceptionally well suited for optimum container loading (20 ft.) as well as for shovelling in tough conditions. The modern, spacious comfort cabin provides excellent all-round view and can now be hydraulically lifted by a "Cab Up/Down" foot switch to a viewing height of 4 metres, thus providing an excellent view of the working area - a distinct advantage for active safety.

From earth scoops, bulk goods scoops, light goods scoops and lifting forks right through to lifting platforms. The versatility of the 305 Multihandler is immense, ranging from the recycling industry, compost and biomass works, ports and warehouses right through to the agricultural sector.
