A new generation in timber handling: SENNEBOGEN 735 E-Series
With the new 735 of the current E-Series, SENNEBOGEN presents the next generation of mobile timber handling machines. The pick & carry machine boasts compact dimensions, a robust design, and optimal consumption values.
As pick & carry machines, the timber handling machines from SENNEBOGEN have long impressed numerous customers around the world. In this regard, the SENNEBOGEN 735, which first came onto the market in 2005, has been a tried and trusted success story for many years. The current E-Series seamlessly extends this success with the new generation. Equipped with a diesel engine complying with the Tier 4f emissions standard, a newly designed robust mobile undercarriage, and particularly low consumption values, the 735 uniformly impresses operators and the persons responsible for machinery. As a genuine timber handling machine, the SENNEBOGEN 735 is at home in the sawmill and in the log sorting yard. This is where above all the pick & carry concept reveals its strengths. Whether the task at hand is removing logs along the sorting line or sorting and manipulating the selection for further processing, the machine is ideally equipped for a variety of tasks. Equipped with a powerful 224 kW diesel engine, two-stage all-wheel travel drive, and an 11.3 m equipment length, the 735 is available to end users via the sales partner network effective immediately.
Compact and maneuverable even in narrow alleys
Thanks to compact dimensions of 3.68 m in width and a rear radius of 2.93 m, the machine can even move safely into narrow alleys. Thus logs can be conveniently manipulated to a height of approximately 10 m. Thanks to the 360 degree infinitely rotating uppercarriage, the machine can always be moved out forwards again, eliminating the need for complex maneuvering. This also makes it significantly easier to unload trucks.
The new SENNEBOGEN 735 has been specially designed for the requirements of mobile timber handling. An articulated boom behind the center of the machine ensures ideal weight distribution. In travel operation, the machine's center of gravity is always centrally positioned over the slewing ring; as a result, the rear ballast can be significantly reduced in dimensions and weight. The 735 can even be deployed with confidence on demanding terrain, on inclines and on a difficult substrate. The two powerful travel drives with two speed levels accelerate the machine up to 20 km/h. With wide twin tires and a supplemental support plate, the machine is stable in every position and can even pull two trailers up to 30 t.
Low fuel consumption - easy to operate
Optimized engine control, the proven EcoMode, and well-designed air control ensure consumption values that are quite respectable. In direct comparison with the predecessor series, a reduction of up to 25% could be achieved. Initial test implementations under realistic conditions confirmed the low consumption, which currently no competitor has achieved. For the operator, the 1.0 m rigidly elevated, comfortable Maxcab offers an ideal overview of the equipment and work area. An extensive lighting package and surrounding cameras offer the operator additional support during work. Equipment features, such as the standard direction of travel reversal and the SENCON control system with intuitive operation, offer the operator comfortable working conditions.

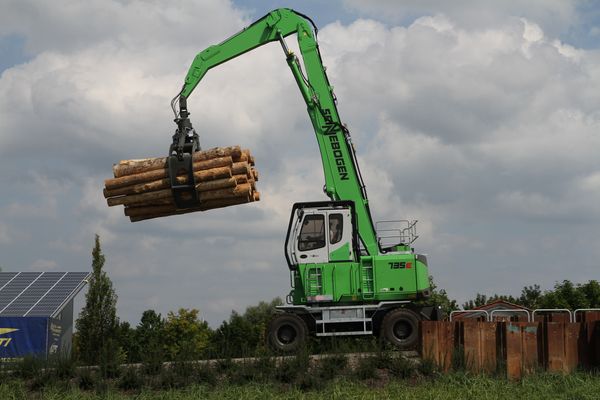

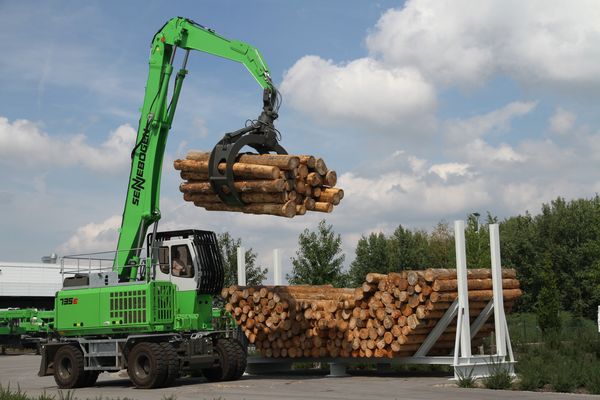

Image caption: The SENNEBOGEN 735 of the current E-Series heralds the arrival of a new generation of timber handling machines. The maneuverable pick & carry machine boasts state-of-the-art technology and low consumption values.
